Dried Fruit Velcro Pouch vs Zipper: Closure, Opening Force and Machine
Compare hook-and-loop Velcro closures and press-to-close zippers on a dried fruits velcro pouch machine by sugar crumb tolerance, flange seal testing and opening clearance.

On This Page
How hook-and-loop Velcro closures and press-to-close zippers divide on dried fruit pouches

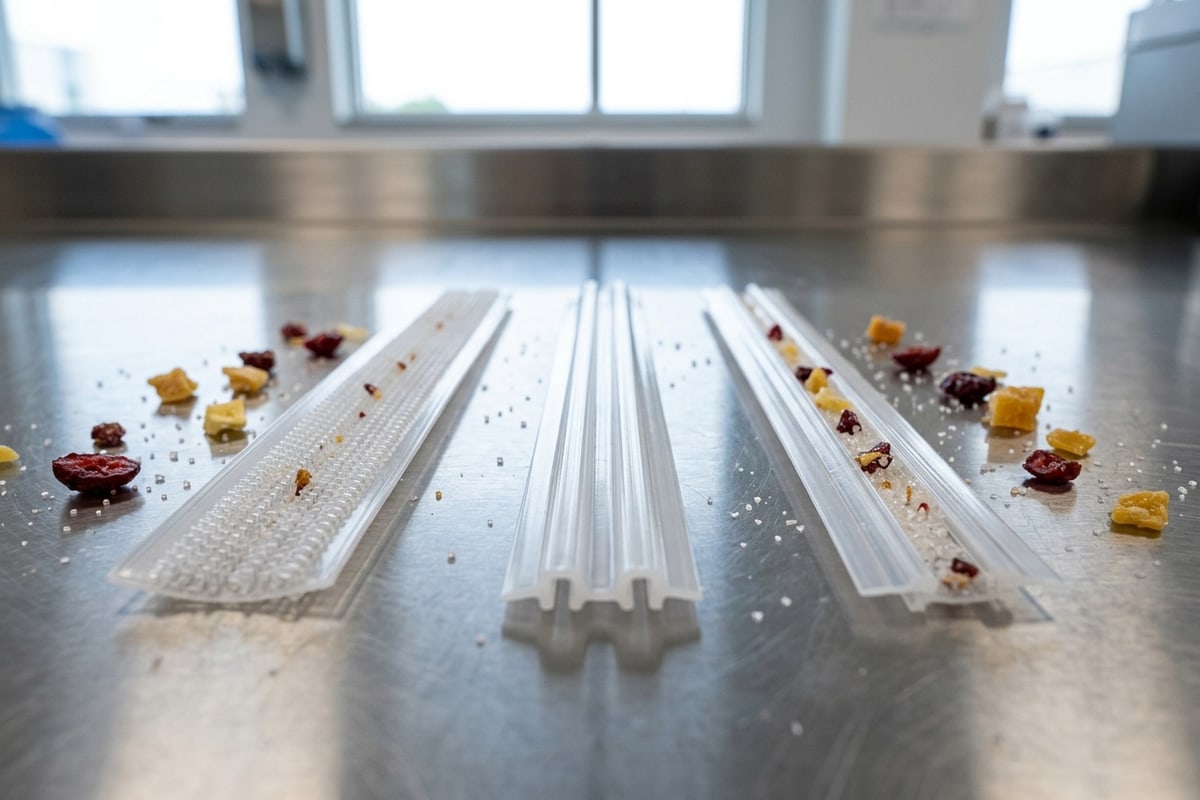

Selecting a dried fruits velcro pouch machine or a hook and loop pouch zipper starts with comparing how the resealable closure engages when product particulates cross the pouch neck. On custom laminated resealable pouches, single-track press-to-close zippers have one interlocking ridge and crumbs stop them from closing, double-track press-to-close zippers have two parallel ridges so the bag still holds if one ridge misses, and hook-and-loop closures use interlocking micro-hooks for crumbly or bulk products. Protein, flour, and milk powder fines pack into a single-track press-to-close profile and stop it from closing, requiring a double-track zipper, a filling funnel that reaches below the zipper, and wiping the track before sealing. After filling dried fruit and nuts into premade zipper pouches, fragments or coatings can collect inside the zipper tracks near the opening even when the top seal looks clean, requiring empty-pouch opening, filling with the real product, and the final seal or consumer reclosure to be treated as separate stages.
VELCRO Brand PRESS-LOK closures are offered in polypropylene and polyethylene constructions depending on style, with a low to medium cycle life. VELCRO Brand PRESS-LOK is heat sealable to most PE flexible films and engages without precise line-up while producing an audible click. The PRESS-LOK Brand Reclose System closes securely around fines and particulates with a squeeze and requires no precise alignment. VELCRO Brand PRESS-LOK flexible packaging applications include side gusset, block bottom, Doy-pack, and 3-Side Seal formats for sugar, rice, cheese, dried fruits & nuts, cookies, coffee, confectionary, and pet food. Selected polyethylene PRESS-LOK styles are mono-material constructions intended to support recyclable pouch designs where the full laminate structure also qualifies; confirm the specific SKU datasheet rather than treating every PRESS-LOK variant as PE-only, and small particles such as powdered goods do not compromise the seal as with a traditional zip closure; the end-product recyclability depends on both the manufacturers' packaging and the availability of local recycling facilities. On the Vamvalis Foods peanut and dried-food pouch line built with VOLPAK horizontal form-fill-seal equipment, VELCRO Brand PRESS-LOK closures seal through peanut dust contaminants and re-close reliably in reported line trials without systematic misalignment. VELCRO Brand PRESS-LOK is an interlocking molded micro-hook closure system; packaged tape styles such as 775 / 779 are narrow (about 0.625–0.875 in / 15.88–22.23 mm), while broader commercial widths exist in the wider PRESS-LOK family—match the SKU width to the pouch drawing instead of assuming a single maximum.
Easylock by Aplix consists of two food-grade, heat-sealable polyethylene hook-to-hook self-gripping strips designed to be welded onto film, requires no alignment, and maintains performance when the hook area is contaminated. Easylock by Aplix can be opened and closed at least 50 times, is washable, and APLIX offers closure solutions for flexible packaging of all sizes (up to 20 kg); all APLIX production sites are BRCGS certified. Easylock by Aplix is made of LDPE, is sealable with PE films for recyclable packaging accredited by Trex, and functions even if particulates contaminate the hook track, making stuck particulates easier to remove than from a regular zip. Use the comparison matrix and related links below to review how single-track zippers, double-track zippers, and hook-to-hook micro-hook closures divide across dried fruit and nut pouch formats.
- Review the Fruit & Nuts Zipper-Pouch Packaging machine profile
- Compare multihead VFFS, vacuum VFFS, and premade zipper-pouch routes for nuts and dried fruit
- Examine sticky dried-fruit release and usable opening checks below the zipper
- Review zipper pouch format specifications and incoming bag comparison checks
| Closure family | Engagement geometry and material structure | Particulate behavior and line handling focus |
|---|---|---|
| Single-track press-to-close zipper | Single-track press-to-close zippers have one interlocking ridge on custom laminated resealable pouches | Protein, flour, and milk powder fines pack into a single-track press-to-close profile and stop it from closing |
| Double-track press-to-close zipper | Double-track press-to-close zippers have two parallel ridges so the bag still holds if one ridge misses | Pair a double-track zipper with a filling funnel that reaches below the zipper and wipe the track before sealing |
| VELCRO Brand PRESS-LOK micro-hook closure | Interlocking molded micro hook closure system in polypropylene and polyethylene base materials heat sealable to most PE flexible films | Closes securely around fines and particulates with a squeeze and audible click without precise alignment |
| Easylock by Aplix hook-to-hook closure | Two food-grade heat-sealable LDPE hook-to-hook self-gripping strips rated for at least 50 openings and closings | Functions when particulates contaminate the hook track and makes stuck particulates easier to remove than from a regular zip |
Hook-to-hook micro-hook profiles, tape widths and bag weight classes
Commercial hook-to-hook and press-to-close closure series publish distinct profile widths, hook lane geometries, and bag weight classes that determine how much space the closure occupies inside the pouch neck. VELCRO Brand PRESS-LOK 775 is a Side by Side closure with a width of 15.88mm (0.625") featuring a thin, tight micro-hook seal for smaller pouches. VELCRO Brand PRESS-LOK 776 is a Side by Side closure with a width of 15.88mm (0.625") providing audible opening and closing and a tactile feel closure suitable for powdered products. VELCRO Brand PRESS-LOK 779 is a Single Hook Lane closure with a width of 22.23mm (0.875") that allows for a pouring feature and is designed for large size bags and powdered products. VELCRO Brand PRESS-LOK PE heat-sealable fasteners conform to food-contact regulations US FDA 21 CFR 177.1520, (EU) No. 10/2011, and (EC) No. 1935/2004. The VELCRO Brand PRESS-LOK machine folding and alignment process operates in three steps: Unfolded Introduction, Folded & Aligned, and Ready for Sealing. VELCRO materials for the PRESS-LOK 954 style are described by the supplier as about 20% lighter than first-generation PRESS-LOK closures, while the 952 Closure is designed for large bags. VELCRO Brand PRESS-LOK Advanced 952 closures can be heat-sealed to plastic packaging at lower temperatures, minimizing film impression marks on the package.
For small bags under 1kg, aplix 973 is a narrow sensory closure made of 100% LDPE suitable for food contact with lateral flanges for gripping and sealing and a total width of 16 and 23 mm. For medium-sized bags under 2kg, aplix 974 is a narrow closure with increased sensory effect made of 100% LDPE suitable for food contact with lateral flanges and a total width of 16 mm. For heavy bags up to 20kg with or without gussets, aplix 971 is a robust closure made of 100% LDPE suitable for food contact with lateral flanges and a total width of 26 mm. Easylock by Aplix runs on automated Horizontal FFS, Vertical FFS, Pouch making machines, Thermo form seal, and Flowpack machines, and can be delivered in single or mated tapes for dried fruits, snacks, cereal, cheese, protein powder, pasta, and petfood. Unlike heat-sealable LDPE Easylock by Aplix, aplix 966 is a self-adhesive polypropylene hook-to-hook closure available in 17mm wide tape or pre-cut pieces with a cycle life of up to 50 openings and closings.
For small and light pouches under 6 inches wide, Fresh-Lock reclosable zipper options include Click 'N Lock double-lock sensory zippers, Linear Tear Zippers, Double Lock Zippers, Single Lock Zippers, and String Zippers. Fresh-Lock Double Lock Zippers provide consumer-preferred lock spacing and easy crushing locks that require minimal heat for sealing on vertical form-fill-seal and pouch making processes, including sustainable closures in the 8000 Series.

Opening force, peel and shear ratings versus flexible barrier flange seal strength
Evaluating closure performance on a resealable dried-fruit pouch requires separating the mechanical disengagement ratings of a specific micro-hook profile from the heat-seal strength of the closure flange welded to the pouch film. The 10mm PS32 PRESS-LOK 731 self-engaging fastener consists of moulded micro-hooks that self-engage on both parts, eliminating separate hook and loop rolls, with a closed thickness of 1.5mm and a medium cycle life. For 10mm VELCRO Brand PS32 PRESS-LOK 731, Part Number E73101001593250, supplier data for the cited style lists peel strength about 2 N/cm and shear strength about 30 N/cm² (confirm holding-weight test span and units on the datasheet; do not treat a mixed 1.5 kg / 5 cm token as a convertible SI quantity).

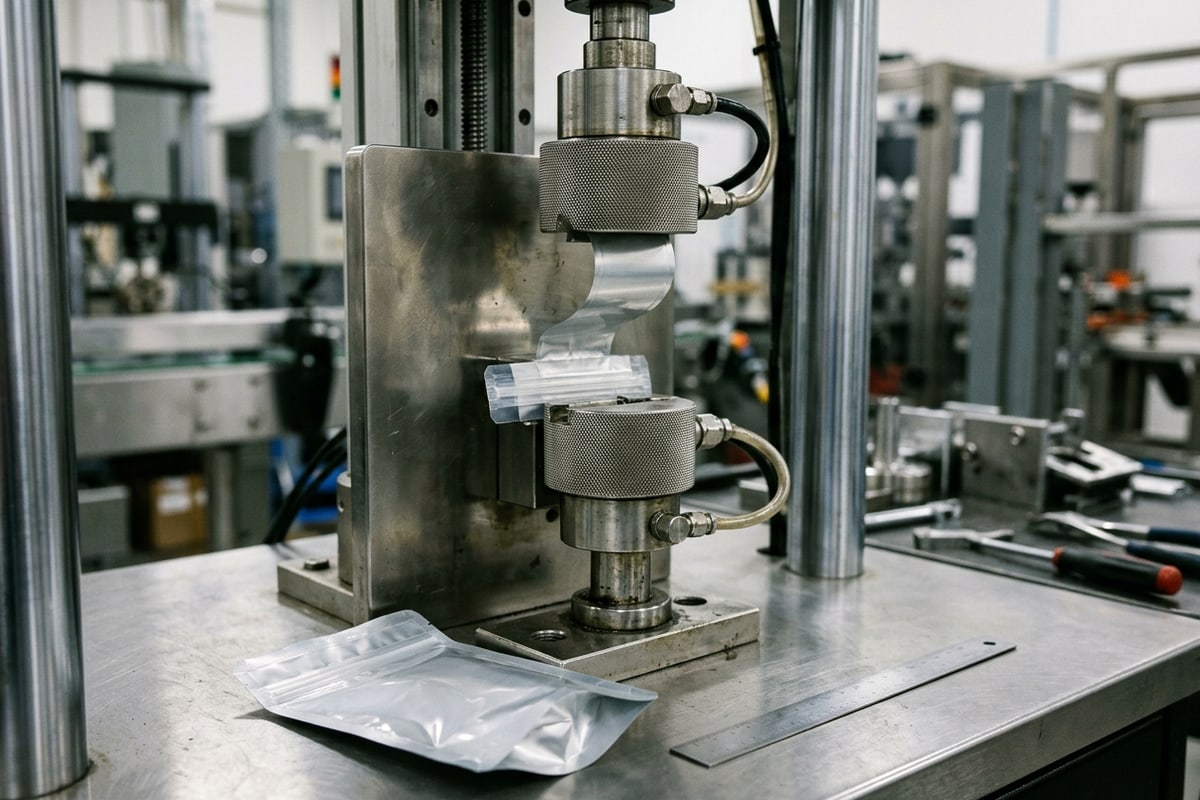

Under ASTM F88/F88M, seal strength testing measures the force needed to separate a sealed strip of flexible barrier material and records the failure mode. Common fixture options in the procedure are Technique A (unsupported), Technique B (supported 90° by hand), and Technique C (supported 180°, least-flexible tail flat against a rigid plate) and the more flexible tail is folded 180° over the seal. On a resealable bag, ASTM F88 applies to the seal strength between the zipper flange and the film rather than the zipper's closing force. Combining a zipper, a tear notch, and a hang hole on the same resealable pouch typically requires about 30–45 mm of header above the zipper, with the tear line positioned about 8–15 mm above the zipper so the tear does not cut into the zipper flange.

Premade pouch and HFFS machine integration: opening stations, funnel clearance and ultrasonic crushing
When integrating a resealable dried-fruit pouch onto a rotary or inline premade pouch machine, the usable filling throat inside the opened closure is always narrower than the outer bag width. Before locking tooling specifications on our Fruit & Nuts Zipper-Pouch Packaging lines, we measure four physical sample inputs: the largest fruit piece or nut cluster in millimeters, the unobstructed opening width on an unused pouch, the top-to-zipper header distance, and the target net weight per format. While our roll-film Nuts & Dried Fruit Multihead VFFS systems run 30–70 bags/min across bag widths of 60–240 mm and lengths of 80–350 mm, premade zipper and hook-to-hook pouch lines are paced by positive bag-mouth opening, closure separation, product settling time through the filling chute, and dwell time at the top sealing jaws.

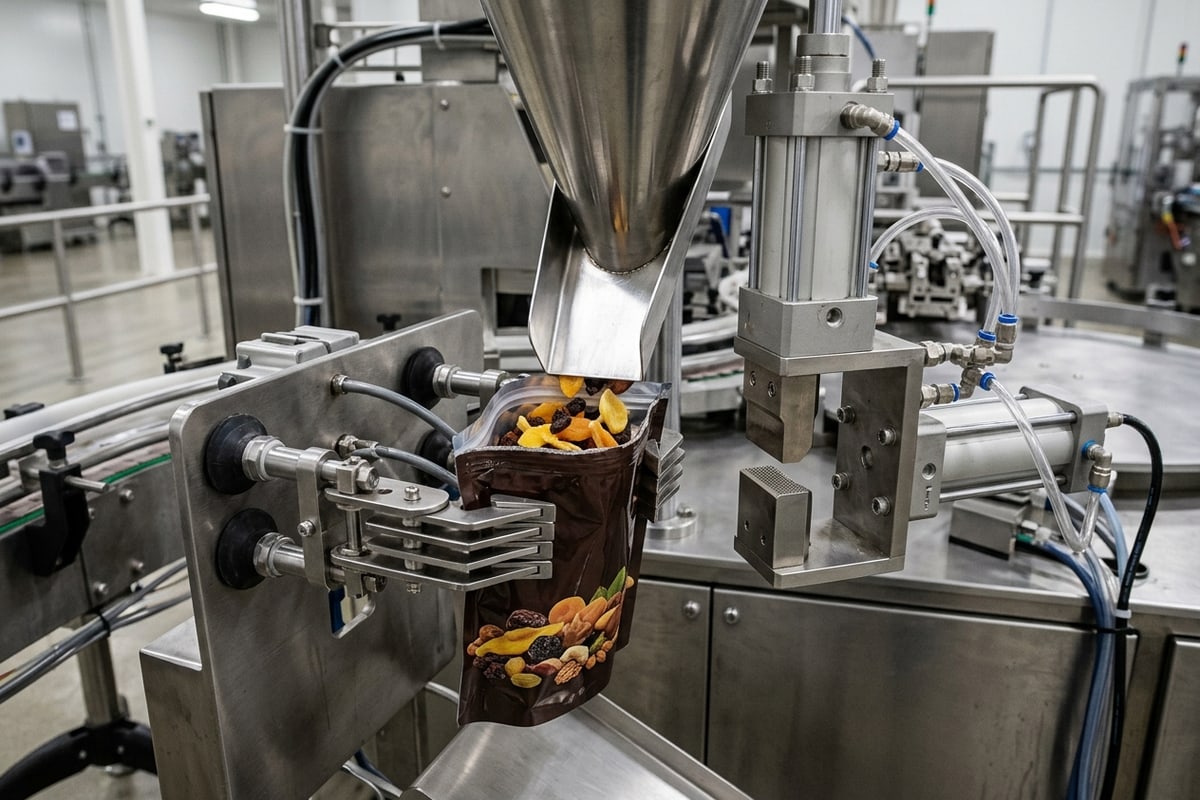

On our rotary and inline premade pouch filling systems, vacuum suction cups and mechanical opening fingers separate both the outer film panels and the inner zipper or micro-hook tracks before product discharge. An integrated bottom-opening sensor interlocks the multihead weigher dump so no fruit is released if a pouch fails to open completely, while diving filling funnels extend past the closure track to prevent sugar crystals or sticky fruit pieces from fouling the reclose profile. Depending on pouch laminate thickness and closure mass, we configure constant-heat, impulse, or ultrasonic top-sealing stations—along with horizontal magazine loading for thick gusseted stand-up pouches carrying Velcro or double-track zipper headers.
During side zipper or closure welding on high-speed automated bag-making and HFFS lines, an ultrasonic zipper crushing unit uses localized frictional heat to flatten the closure ends at the side seal edges, preventing corner leaks where multiple layers overlap. Dukane ultrasonic zipper crush sealing systems apply focused ultrasonic energy at the seal interface across 20, 30, 35, and 40 kHz configurations with rotary or intermittent sonotrodes to produce a controlled crush zone while limiting film distortion, and Sonics ZM-30 30 kHz modules similarly flatten plastic zipper tracks prior to cross-sealing.
In ultrasonic packaging sealing, the anvil and sonotrode focus ultrasonic energy to generate internal friction heat within 100 to 200 milliseconds while the tools remain cold, yielding high hot-tack resistance across PE, PP, PET, multilayer laminates, and mono-material PE structures. Ultrasonic vibrations also displace sugar dust, moisture, or fruit fibers from the seal zone to maintain hermetic top seals. Review the related premade pouch system, zipper pouch opening, and multihead VFFS pages below when comparing roll-film and premade pouch equipment routes.
- Review Premade Pouch Filling and Packing Machines and sealing method options
- Inspect stage-by-stage empty-pouch opening, filling clearance and reclosure checks
- Compare the roll-film Nuts & Dried Fruit Multihead VFFS configuration
| Machine station | Closure and pouch interaction | Verification check before quotation |
|---|---|---|
| Bag magazine and pouch opening station | Horizontal or vertical bag magazine feeding pairs with vacuum suction cups, mechanical opening jaws, and a bottom-opening sensor interlock that prevents dosing if the pouch mouth fails to open completely | Verify that the opening station separates both the film panels and the engaged zipper or hook-to-hook closure without deforming the header |
| Filling funnel and upper pouch neck | Because the closure flanges constrict the neck, the usable filling throat is narrower than the outer bag width, and sugar crystals or fruit fragments can lodge in unprotected tracks | Measure the largest piece size in mm from a production sample alongside the unobstructed opening width in mm on an unused pouch |
| Ultrasonic zipper crush and top sealing station | On dried-fruit and sugar-dusted pouch lines, an ultrasonic zipper-crush station flattens thick hook-and-loop or press-to-close zipper ends at the side seals so the corner seal can close without a leak path. Ultrasonic energy also helps displace moisture, fruit fines, or powder from the seal zone before the final top seal | Confirm heat, impulse, or ultrasonic sealing methods with jaw types verified against the pouch supplier's sealing guidance |

Pre-trial pouch and product checklist before requesting a dried fruit zipper or Velcro pouch quotation
Before sending dried fruit and nut samples for a factory trial or approving a premade pouch machine quotation, assemble a complete product and pouch specification package. In your pre-trial specification sheet, record the largest piece size in mm from a sample in production condition, the unobstructed opening width in mm measured on an unused pouch, the top-to-zipper distance in mm marked on the pouch or drawing, and the net weights in g for each pouch size. When specifying custom resealable pouches that combine a zipper or micro-hook strip, a tear notch, and a hang hole, plan for 30–45 mm of header above the closure and keep the tear line 8–15 mm above the closure flange so tearing never compromises the reclose track.
During sample trials with dried fruit and nuts, evaluate empty-pouch opening, product discharge through the diving funnel, and final top sealing or reclosure as distinct engineering stages, inspecting inside the closure tracks where sugar coatings or crumbs can collect near the neck. Where protein, flour, or sugar fines accompany the product, ensure the filling funnel extends past the closure track and add air-knife or brush wiping prior to top sealing. Share your unused pouch samples, dimensional drawings, and dried-fruit blend details with our engineering team through our contact page or the enquiry worksheet below so we can match the opening jaws, funnel geometry, and heat, impulse, or ultrasonic sealing bars to your line.
